We've summarised the most requested information right here to help you on your journey, including style options, the difference between drive wheel types to suit your lifestyle, the most common power function features, and a comparison matrix to compare chairs within our range. If you would like to speak to a power wheelchair expert, place an enquiry via this link and we'll put you in touch with the right person at Permobil.
See the colours available on the latest Permobil F & M Series Power Wheelchairs. You can mix and match or choose from the hydrographics.
See all the colour videos here.
The drive wheel is simply the larger wheel on the power wheelchair and can have a big impact on the way the power wheelchair manoeuvres in different environments (indoors and outdoors). The second largest wheel is called the castor wheel, which provide additional ride stability and comfort. Then the smallest wheels are known as anti-tips, which are simply to provide additional support for safety.
The drive wheel is at the front of the wheelchair and there are two castor wheels at the rear of the wheelchair. The front drive wheel is the first to meet an obstacle and pulls the rest of the wheelchair over the obstacle resulting in a smoother transition (indoors and outdoors). A person may experience improved access to their environment in front of them such as sinks, cupboards and counters etc. as they are seated above the drive wheel. This may enable them to access items and interact with their environment easier as they can manoeuvre closer.

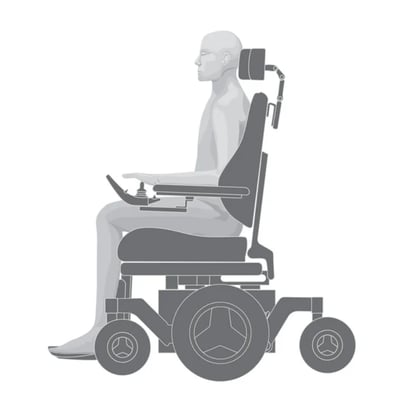

The drive wheel is directly under the wheelchair user, with castor wheels both in front and behind the drive wheel. This drive configuration is often preferred for indoor use because of its tight turning radius. However, with advances in suspension, Mid Wheel Drive wheelchairs have improved in outdoor performance.
Permobil's power wheelchairs are renowned for their innovative features and advanced technology, designed to enhance mobility, comfort, and independence for users. With a focus on ergonomic design, robust performance, and customisable options, Permobil's power wheelchairs cater to a wide range of needs and preferences.
Below are some of the standout features that make Permobil power wheelchairs a top choice for users worldwide:
Rise above the status quo with 12″ and 14″ ActiveHeight™ seat elevator options that help you reach new heights. Featuring three points of contact and a 3.5” rearward shift as the system elevates, experience maximum stability and a smaller footprint in elevation. ActiveHeight™ is also the only seat elevator that does not lock out suspension at full elevation, so keep pace with a smooth ride at a top speed of 5.1 km/h.
M Series - up to 12" | F Series - up to 14"
ActiveReach™ forward tilt enables you to reach for more by creating up to 4.5″ of additional reach. This can be used for reaching beyond obstructions, into high cabinets, or even assist in transfers, truly putting your world within reach. While functional reach and transfers are improved using a seat elevator, many functional tasks are still limited as the chair is positioned sideways to the task at hand or your knees are unable to remain under tabletops. Permobil’s ActiveReach™ pairs with 12″ and 14″ of seat elevation so you can get closer to what matters.
M Series - up to 20° | F Series - up to 45°
Fully programmable standing sequences allow for personalisation of your power standing experience which is further enhanced by adjustable chest support, multiple knee support options, power articulating footplates, and full range of power seat functions. From face-to-face interactions, the Corpus VS empowers you to stand without compromise.
Available on the M Corpus VS & F5 Corpus VS
Conquer your world with the F-Series ComfortRide and ComfortRide Pro fully independent, adjustable suspension. Enjoy superior vibration reduction, ride comfort and drive performance for the widest variety of power wheelchair driving scenarios. The front wheel driving experience is further enhanced by our patented ESP (Enhanced Steering Performance) gyroscope tracking technology, which provides exceptional tracking at high speeds, on side slopes or with alternative drive systems.
Available on: F3 Corpus (ComfortRide) | F5 Corpus VS & F5 Corpus (ComfortRide Pro)
The M-Series FlexLink and FlexLink Pro suspension balances stability, traction and ride comfort for optimal performance and advanced vibration reduction. Factory optimised and adjustable suspension adapts to your needs and environment. The linear spring design enables a greater freedom of movement and more power driving positions. Experience full suspension at any seat elevation height, seating position, or driving speed.
Available on: M3 Corpus (FlexLink) | M5 Corpus (FlexLink Pro)
The M Corpus VS, the newest member of the Permobil power wheelchair family, comes with the DualLink suspension system to optimise stability in standing along with superb low-end torque. The M Corpus VS provides a smooth stand and drive experience while balancing day-to-day traction and ride comfort needs.
Available on the M Corpus VS only.
Download Power Matrix Brochure
|
Drive Wheel
|
Front Wheel Drive
|
Front Wheel Drive
|
Front Wheel Drive
|
Mid Wheel Drive
|
Mid Wheel Drive
|
Mid Wheel Drive
|
Mid Wheel Drive
|
Mid Wheel Drive
|
Rear Wheel Drive
|
|
Max user weight
|
136kg
|
150kg
|
150kg
|
120kg
|
150kg
|
150kg
|
204kg
|
136kg
|
136kg
|
|
Chair weight w/ batteries
|
196kg (Grp 24)
|
187kg (Grp 24)
|
185kg (Grp 24)
|
193kg (Grp 24)
|
192kg (Grp 24)
|
184kg (Grp 24)
|
203kg (Grp 24)
|
145kg (Grp 34)
|
203kg
|
|
Max speed
|
10km/h
|
10km/h
|
10km/h (8km/h without support wheels)
|
10km/h
|
10km/h
|
10km/h
|
8km/h
|
8km/h
|
15km/h
|
|
Base turning radius
|
30”
|
30”
|
26.5”
|
22”
|
21.5”
|
20.5”
|
22”
|
20.5”
|
66”
|
|
ActiveHeight™
|
14”
|
Optional 14”
|
Optional 12”
|
12"
|
Optional 14”
|
Optional 12"
|
No
|
No
|
No
|
|
ActiveReach™
|
Standing
|
5°, 10°, 20° & 45°
|
5°, 10°, 20° & 30°
|
Standing
|
5º, 10° & 20°
|
5º, 10° & 20°
|
No. Optional 8” seat elevation
|
No
|
No
|
|
Recline options
|
85° – 180° (power)
|
85° – 120° (manual) 85° – 180° (power)
|
85° – 120° (manual) 85° – 180° (power)
|
85° – 180° (power)
|
85° – 120° (manual) 85° – 180° (power)
|
85° – 120° (manual) 85° – 180° (power)
|
85° – 120° (manual) 85° – 150° (power)
|
No
|
No
|
|
Legrest options
|
85° – 180° (power)
|
85° – 180° (manual & power)
|
85° – 180° (manual & power)
|
85° – 180° (power)
|
85° – 180° (manual & power)
|
85° – 180° (manual & power)
|
85° – 175° (manual & power)
|
85° – 140° (manual) 65° – 80° (adjust. swing-away)
|
20° - 70° (with conditions)
|
|
MyPermobil App
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
No
|
No
|
No
|
|
Max user weight
|
16kg
|
35kg
|
75kg
|
75kg
|
60kg
|
|
Max speed
|
2.4km/h
|
6.5km/h
|
8km/h
|
10km/h
|
8km/h
|
|
Min turning radius
|
-
|
21"
|
25"
|
20"
|
28"
|
|
Weight w/ batteries
|
23.6kg
|
102kg (M 40)
|
123kg (Grp 34)
|
142kg (Grp 34)
|
153kg (Grp 34)
|
|
Seat-to-floor height
|
12.1” – 21.7”
|
15” (elevator)
|
16.5” (elevator) 16.5”, 17.25”, 18.5” (fixed)
|
17” (elevator) 17”, 17.75”, 18.5” (fixed)
|
3” – 26” (elevator)
|
|
Seat elevator
|
-
|
Up to 8”
|
Optional 8”
|
Optional 8”
|
8”
|
|
Power tilt options
|
-
|
0° – 25°
|
0° – 45°
|
0° – 45°
|
0° – 45°
|
|
Recline options
|
-
|
85° – 120° (manual)
|
85° – 120° (manual)
|
85° – 120° (manual)
|
85° – 105° (manual)
|
|
Legrest options
|
-
|
90° – 150° (manual)
|
70° (swing-away) 90 – 150° (centre mount)
|
70° or 90° (swing-away) 90° – 150° (centre mount)
|
90° – 125° (manual)
|
|
Range (up to)
|
5.6km
|
24.1km
|
20.9km
|
20.9km
|
27.4km
|
Permobil founder Dr. Per Uddén believed that helping individuals achieve the greatest level of independence is a basic human right and, for over 50 years, that has been the driving force behind our innovative power wheelchairs. As a doctor working in Sweden, Per met polio patients who were confined indoors, and he was passionate about finding a solution to help them. As a result, he created some of the first power wheelchairs! Today, Permobil wheelchairs are highly customisable to meet an individual’s needs, and offer power functions, accessories, and connectivity to help end users live life to the fullest.
An outspoken advocate for people with disabilities, Dr. Per Uddén built the company on the idea that every person has the right to have his or her disability compensated as far as possible by aids with the same technical standard as those we all use in our everyday lives.
Dr. Per Uddén was driven by a passion to find new solutions to the problems he encountered in his work as a doctor. With a unique focus on the patient, he and his team combined creativity with technology to write the first chapter in the Permobil story.
The founders of the new additions to the Permobil family were also driven by shared passions and putting the needs of the individual first.
